ASCE Rails

ASCE Rail Sizes Supply from AGICO

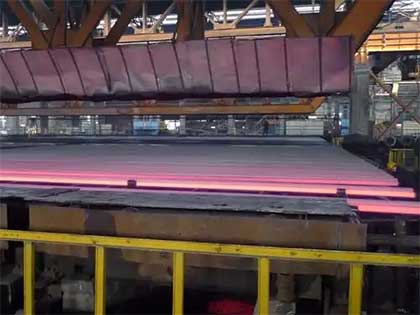

ASCE Rail Production And Processing Services

AGICO offers a series of processing services listed below, along with ASCE rails for customers. Such as cutting steel rails to length to fit the railroad requirements, drilling bolt holes for fish plate and fish bolt installation, surface treatment for anti-corrossion, etc. The ultimate goal of AGICO is to supply the best quality steel rails as well as help customers reduce any cost after buying our product.

What is ASCE Rail

ASCE Rails are an older type of Tee section type rail characterized by their small cross-section and light weight. They are suitable for light-load industrial rails operating under low to medium axle loads, and are applicable to mining and industrial applications. AGICO manufactures ASCE rails in all sizes, as well as other common standards such as UIC rails, AREMA rails, and BS rails.

ASCE Rail History: ASCE Rail refers to a series of early American rail section standards developed by the American Society of Civil Engineers (ASCE), which primarily defined the cross-sectional dimensions and theoretical weight of rails. Although it has been superseded by the more modern AREMA (American Association of Railroad Engineers and Maintenance) standards, it remains widely used in mining rails, light industrial rails, port industrial transportation, and small railroads in North and South America at present.

Steel Material Grades for ASCE Rail

Although the cross-sectional shapes, weights, and dimensions of ASCE 25–80 rails all follow traditional design, ASCE rail products produced now use high-purity carbon steel, which is produced by the modern iron smelting process, from open-hearth furnace to Basic Oxygen Furnace / Electric Arc Furnace. Since the steel has higher performance of purity and significantly more stable. Microalloying and appropriate heat treatment processes will further make improves its strength, wear resistance, and service life, which is significantly superior to the rail materials of ASCE rails in the old days.

The steel materials for ASCE rail production is designed with ordinery carbon steel standards, the steel grades includes the following 3 types:

• ASTM A1 (Carbon Steel Rail): Applicable to light rail (including ASCE).
• ASTM A759 (High-Strength Rail Steel): Used in some export regions.
• National or enterprise standards (such as China's Q235B/Q275, 55Q, etc.)

ASCE Rail Specifications

ASCE Rails are supplied by AGICO in the following rail models, this info is provided in mm and kg, if you need other version in inch, send an message now for the other version.

ASCE 20–80 Steel Rails Classified by Application

The models of ASCE rails can be classified by application due to their application: there are light-weight ASCE rails for industrial and mining tracks, and heavy-weight ASCE rails for crane runways and heavy-duty low-speed industrial tracks.

ASCE Rails Models for Industrial and Mining Rails

The light-weight ASCE 20-40 rails have small sizes and strength, which are mainly used in light-duty applications of mining tracks and industrial rails. Here are the details of their weight and applications:

ASCE Rails Models for Crane Rail

ASCE 60-80 rails are featured with large size and weight, which can be used for heavy-duty industrial rails and light-duty crane runway rails, here are the details of their weight and applications in table:

AGICO – Your Reliable ASCE Rail Suppliers

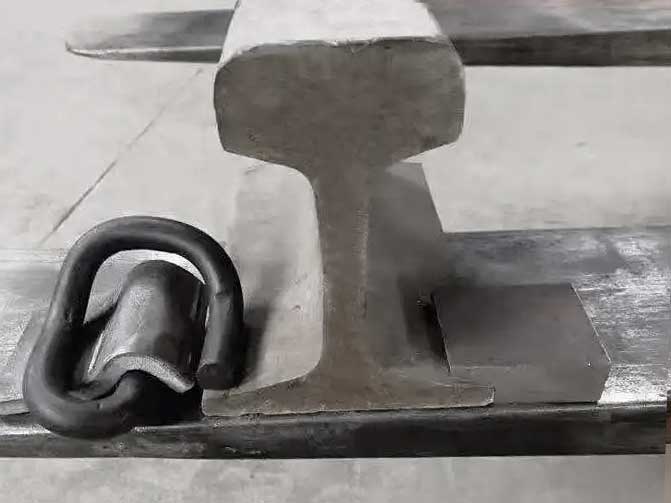

Besides the ASCE rails and fabrication service, AGICO offers a comprehensive range of high-quality rail fasteners and related railroad parts, such as rail clips, rail clamps , and rail joints.
