High-strength Fishplate

High-strength Fishplate Supplied from AGICO

AGICO supplies high-strength fishplates made of quenched and tempered 45#/,50# (medium-carbon steel), 42CrMo and Cr-Mo series alloy steel, AISI 1045/1050, and ASTM A572 Gr.50. We also sell fishplates made of cast iron and low-carbon steels such as Q235 and Q345.

Choosing rail fasteners from AGICO is your right choice, our fishplates and other railtrack parts are featured with engineering-grade precision, heavy-duty durability, international standard compatibility, and global delivery capabilities, AGICO aims to bring greater safety, reliability, and service life to your railway systems or crane tracks.

High-Strength Fishplate Specification:

AGICO offers a variety of ordinary and compromise high-strength fishplates suitable for light rail, heavy-haul railway, and heavy-duty crane track systems. All fishplate products are manufactured to international railway standards (UIC, AREMA, EN, GB, CR series) using precision rolling, forging, and heat treatment processes, and CNC drilling ensures perfect hole fit and load transfer.

• Steel Material: 45#, 50Mn, 42CrMo, Q355, Q420, etc.

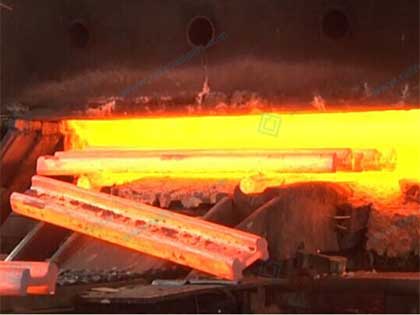

• Heat-treatment: quenching + tempering
• Surface corrosion protection: spraying, galvanizing, Dacromet coating, etc.
• Feature: High clamping force and fatigue resistance under heavy load conditions

---

High-strength Fishplate Size Chart According to Standard

---

---

Optional high-strength Steels for Fishplate

What Is High-strength Fishplate and Rail Joint?

High-strength fishplate refers to a fishplate with high tensile strength; it is usually made of a series of high-strength steel materials. Rail joint is a rail section that consists of fishplate and fish bolt and nuts. This reinforced rail track part is designed to connect rail ends and maintain track alignment in heavy-haul railways, mining rails, and heavy-duty crane rails. It provides higher yield and tensile strength than ordinary fishplates. Together with fish bolts, they form rail joint bar that can withstand impacts, bending moments, shear forces, and fatigue loads, making it an ideal rail fastening part for heavy-load railways.

Differences Between High-strength and Ordinary Fishplates

High-strength fishplate can significantly improve the safety and durability of the rail system.

• It has higher mechanical properties such as yield strength, tensile strength and impact toughness, it can effectively reduce fretting and structural loosening at the joints, and evenly transfer the huge dynamic load generated by the train or crane to the rail track.
• It has a reinforced structure that can effectively limit deformation at the rail joint, ensuring that the gauge, alignment, and elevation remain stable over the long term, preventing rail joint sinking or rail track misalignment.

High-strength Fishplate Types

AGICO high-strength fishplates can be used with 4-hole or 6-hole fittings and are compatible with rail types such as 60 kg, UIC series, 50N, JIS 50N, 90A/90R, 115RE, and 132RE. The main types of high-strength fishplates are similar to ordinary fishplates. It has slight differences according to the load level and performance requirements of different track systems.

• Heavy Rail Fishplate： AGICO supplies fishplates for heavy-haul rail tracks with a load capacity of 50–75 kg/m,for example: busy main lines and heavy-haul freight lines such as: UIC60, UIC54, AREMA 115RE/132RE, 50R, etc.
• Crane Rail Joint Bar： AGICO supplies fishplates for runway tracks of heavy-duty gantry cranes, bridge cranes, and port cranes. Our fishplates are suitable for crane rails of KP70, QU80, QU100, QU120, etc.
• Mining & Factory Light Rail Joint Bar： AGICO offers high-strength fishplate solutions for light and medium-sized rail tracks in factory interiors, mines, and railways. Our fishplate provides superior strength and durability compared to ordinary fishplates.

Standard and Compromised Rail Joint Bar

Fishplates supplied from AGICO can also be classified by their shape. AGICO supplies standard rail joint bars with flat design and standard hole positions, for use with linear rail joints; compromised rail joint bars are used for curved rails and rails with special cross-sections, transition rails, etc. We have a full range of fishplate sizes compatible with most railway and crane tracks.

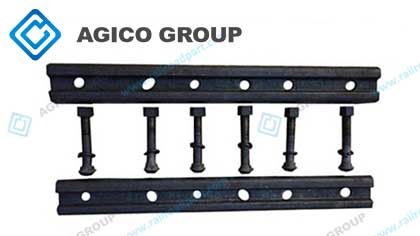

Fishplate of Insulated Rail Joint

Ready Stock — Fast Delivery for Railway & Crane-Rail Projects

AGICO supplies high-strength fishplates for various applications, such as heavy-haul freight railways, high-speed railway maintenance sections, port/dock crane rails (QU series), factory crane rails (KP series), metro and urban rail transit, and Industrial and mining rail systems.
