136RE Rail
What is 136RE Rail?
AREMA 136RE rails are a commonly used heavy-duty rail profile, it is also widely known as TR68 rail, which represents the same rail profile under alternative naming conventions. 136RE rails are mostly supplied for railway tracks in mining operations and mainline railways. This rail profile is manufactured strictly to AREMA standards. Each meter of rail weighs 136 pounds, equivalent to approximately 67.4 kg/m. They have been offering excellent durability and load-bearing capacity for numerous railway lines.
Compared with other ordinary steel rails, 136RE rails are more suitable for high hardness, excellent strength, and superior wear resistance, which is essential properties for heavy-haul and long-haul railway systems. They are widely used in the US market and South America, with the advantage of high axle loads and long service life. If you require lighter rails, 115RE rails are your best option.
136RE Rails for Sale
AGICO supplies 136RE rails with other railroad parts compatible with standard AREMA fastening systems, rail clips, fishplates, and railway turnout components designed for heavy rail sections. 136RE rails are manufactured from steels in 900A/1000 grades with heat treatment, 136RE rail offers excellent wear resistance and reduced maintenance requirements.
| Profile | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | D | E | cm² | kg/m | ||
| American standard | ||||||||
| 136RE (TR68) | AREMA | 185,70 | 152,40 | 74,60 | 49,20 | 17,50 | 85,90 | 67,50 |

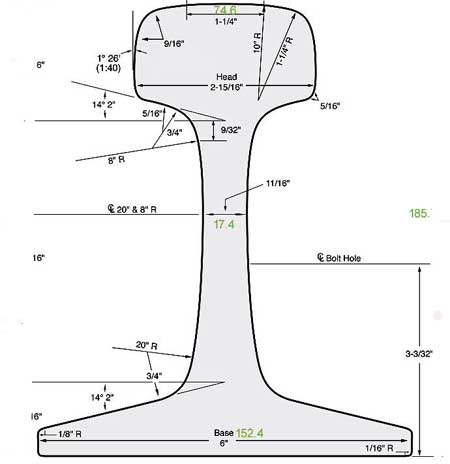

136RE Specification and Profile Dimension
- Standard: AREMA
- Steel Grade: 900A/1100
- Length: 12m-25m (customizable)
- Weight: 67.41 kg/m
- Bottom width: 152.4 mm
- Mesh thickness: 17.46 mm
- Head width: 74.61 mm
- Guide rail height: 185.74 mm
136 RE Rails Specification
136RE rail steel export from AGICO is made of high-strength, wear-resistant, and corrosion-resistant steel grades, and follows rigorous manufacturing processes and quality control procedures in qualified steel rail factories. Its cross-sectional dimensions are designed to fully meet the requirements of railway transportation, maintaining high precision and stability even under prolonged heavy loads. What’s more, 136RE rail also possesses excellent corrosion resistance, enabling long-term stable operation in harsh environments such as humid and rainy conditions, reducing maintenance costs during the service life.
AGICO shows you the detailed technical info of this specifications: 136re is a tee rail profile manufactured according to AREMA standard, 136 refers to the weight of 136 pounds per yard, enabling it with higher load-bearing capacity and wider range of heavy-duty applications compared to 115RE rails.
- Head Width: 74.61mm. The head width of 136RE American standard rails is increased compared to 115RE. This design helps to distribute the concentrated pressure of the wheels on the rail, further improving the rail's service life.
- Bottom Width: 152.4mm. The wide bottom width provides a more solid support base for the steel rail, enhancing the fit between the rail and sleepers, and maintening the rail stability.
- Rail Height: 185.74mm. The higher rail height design helps to improve the rail's bending strength and torsional resistance, making it better suited for heavy-load transportation.
- Web Thickness: 17.46mm. The increased web thickness significantly improves the track's load-bearing capacity under heavy loads and reduces wear caused by long-term operation.

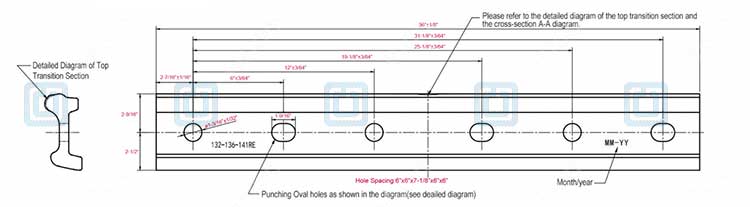

136RE Rail Dimensions and Drilling Fabrication
| Rail Type | 136 RE |
|---|---|
| Section Number | 13625 |
| Nominal Weight | 136 lbs/yd |
| Standard Length | 39', 80' |
| Standard Drilling | 3-1/2" × 6" or 3-1/2" × 6" × 6" with 1-1/4" dia. holes |
| Joint Bar Length | 24" or 36" |
| Joint Bar Weight |
4-Hole bars: 70 lbs/pr With hardware: 81 lbs/pr 6-Hole bars: 117 lbs/pr With hardware: 134 lbs/pr |
| Track Bolt | 1-1/8" × 6-1/2" |
136RE Rail Chemical and Mechanical Characteristics
Material Composition of 136RE Rail Steel: 136RE rail is a heavy-duty rail steel produced according to American Standard, and its material selection is crucial. This rail model are primarily made of high-strength, wear-resistant 700/900A/1100 steel, which all have excellent mechanical properties, wear resistance, and corrosion resistance.
Chemical Composition of AREMA Rail Steel
| AERMA 2019 | Strength Grade | C | Si | Mn | P | S | Ni | Cr | V |
|---|---|---|---|---|---|---|---|---|---|
| Carbon Steel | 0.74–0.86 | 0.10–0.60 | 0.75–1.25 | ≤0.020 | ≤0.020 | ≤0.25 | ≤0.30 | ≤0.010 | |
| Low Alloy Steel | Standard Strength (SS) | 0.72–0.82 | 0.10–0.50 | 0.80–1.10 | ≤0.020 | ≤0.020 | ≤0.15 | 0.25–0.40 | ≤0.010 |
| Intermediate Strength (IS) | 0.72–0.82 | 0.10–1.00 | 0.70–1.25 | ≤0.020 | ≤0.020 | ≤0.15 | 0.40–0.70 | ≤0.010 | |
| High Strength / Head Hardened (HH) | 0.72–0.82 | 0.10–1.00 | 0.70–1.25 | ≤0.020 | ≤0.020 | ≤0.15 | 0.40–0.70 | ≤0.010 |
Mechanical Properties of AREMA Rail Steel
| AREMA 2019 | Strength Grade |
Yield Strength N/mm2 |
Tension Strength N/mm2 |
Elongation % |
Brinell Hardness HBW |
|---|---|---|---|---|---|
| Carbon Steel | Standard Strength (SS) | 511MIN | 983MIN | 10MIN | 310MIN |
| Intermediate Strength (IS) | 724MIN | 1069MIN | 10MIN | 350MIN | |
| High Strength / Head Hardened (HH) | 828MIN | 1179MIN | 10MIN | 370MIN | |
| Low Alloy Steel | Standard Strength (SS) | 511MIN | 983MIN | 10MIN | 310MIN |
| Intermediate Strength (IS) | 552MIN | 1014MIN | 8MIN | 325MIN | |
| High Strength / Head Hardened (HH) | 828MIN | 1179MIN | 10MIN |
370MIN |

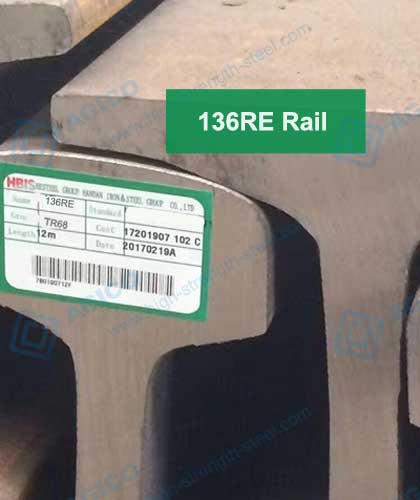

136RE Rail and Fishplates Delivery
As the manufacturing of 136RE rail at AGICO adopts refining of alloying elements and mature production processes, 700/900A/1100 steel ensures uniform internal structure and excellent mechanical properties. 136RE rail are required to have high tensile strength, yield strength, and hardness specified by American Standard, this steel rail model can withstand long-term operation of heavy-load trains without easily deforming or damaging. Simultaneously, they also features with good toughness and weldability, making track laying easier and faster, and providing strong support for the high-speed, stable operation of trains.
Its direct equivalents are other rail types classified by weight in the AREMA standard series; if a replacement or selection of a rail with similar load-bearing capacity is required, consider the following common options:

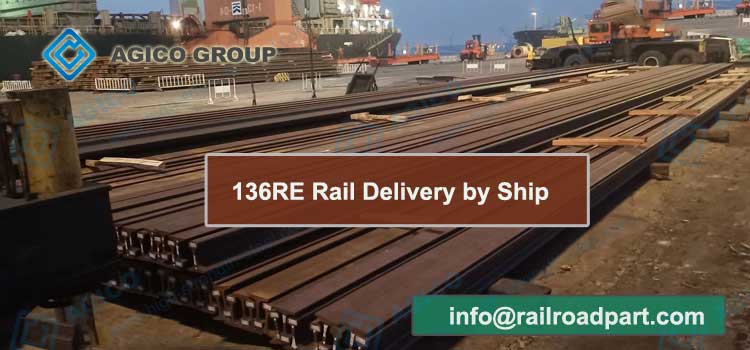

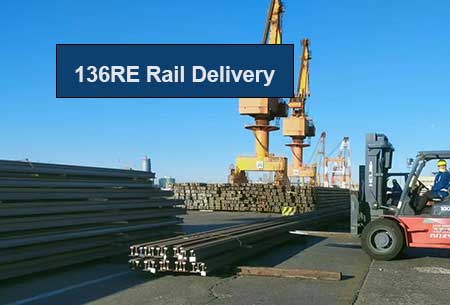

136RE Rail Package for Delivery

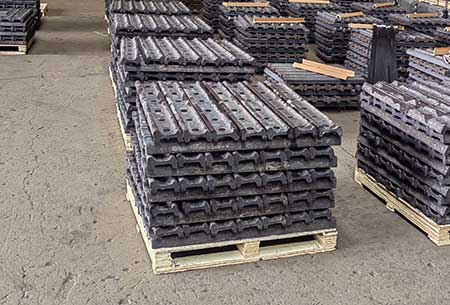

136RE Fishplate for SaleAGICO produces 136RE rail under strict quality control to ensure long service life, dimensional accuracy, and excellent weldability. Production follows strict AREMA/AREA manufacturing and quality-control requirements, ensuring that the section geometry, metallurgical quality, and mechanical properties fully comply with U.S. railway standards. The specifications guarantee the strength, stability, and operational safety required for reliable railway service.
Other AREMA Rail Models
AGICO also sells other railway track models all belong to the AREMA/ASTM standard series, and here are the most suitable instructions on steel rail selection based on load, speed, service life, and track bed conditions.
- 115RE Rail — Weighs approximately 115 lb/yd (approximately 56.9 kg/m), slightly lighter than 136RE Rail — Suitable for medium load railway applications.
- 132RE / 133RE Rail — Weighs approximately 132–133 lb/yd (approximately 65–66 kg/m), close in size to 136RE, highly compatible with construction, suitable as a transitional or secondary track option.
- 141RE Rail — Weighs approximately 141 lb/yd (approximately 69.9 kg/m), heavier than 136RE, suitable for higher-intensity, heavy-load tracks.
Your Reliable 136RE Rail Supplier – AGICO
AGICO has more than 21 years of exporting experience of railway steel products. We can offer factory visit, export documents, and third-party inspection (SGS/BV), all of our railway products are produced strictly according to national standards and specifications. AGICO will gurrentee reliable packaging and fast delivery for customers. AGICO has a professional engineering team for 1 to 1 project support, contact us now if you have problems in rail selection, drawing confirmation, and accessory matching.
Relationship Between 136RE and TR68 Rail
- 136RE Rail (also known as TR68) refers to the same heavy rail profile under American railway standards. 136RE is the AREMA technical designation (136 lb/yd), while TR68 is a commercial naming based on its approximate weight of 68 kg/m. When manufactured to AREMA requirements, 136RE and TR68 are fully interchangeable in design and application.
- They have the same cross-section geometry, theoretical weight, application range, compatibility with fasteners, fishplates, and track components.
