Track Lifting and Lining Machine

Hydraulic Track Lifting and Lining Machine for Sale

YQBJ-300x200 Hydraulic track lifting and lining machine is a special track maintenance equipment for railway line overhaul and track bed. It's suitable for track lifting and lining operation of 43 kg/m to 75 kg/m railway lines, functions by lifting track and adjusting rail horizontal direction. with the advantages of high safety reliability, large lifting and lining tonnage, high working efficiency, easy to operate, light weight, reduces labor intensity, wide application, etc.

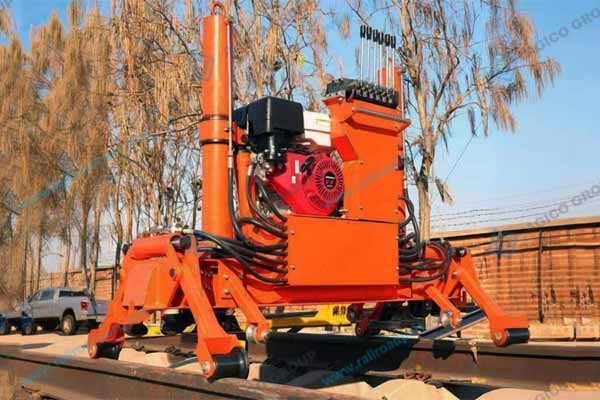

YQBJ-300x200 Hydraulic Track Lifting & Lining Machine Specification

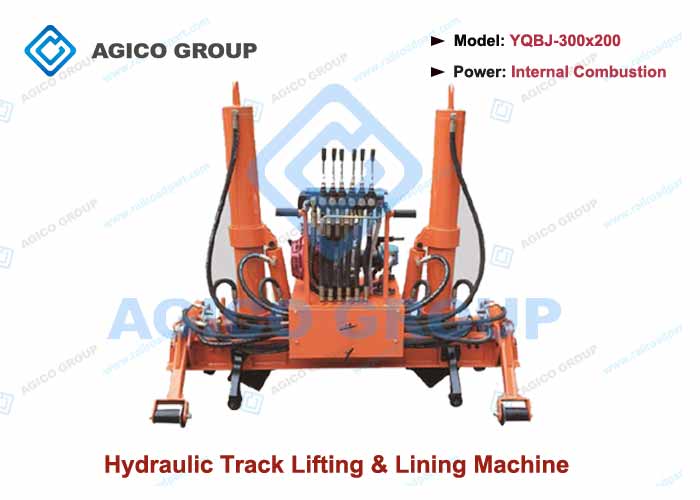

Here is the main configuration of YQBJ-300x200 Track Lifting & Lining Machine: It is powered by a Honda GX390 gasoline engine, with a lifting cylinder stroke of 800 mm and a lining stroke of 200 mm, equipped with a double-hook rail gripping device. It has high working efficiency for the gasoline engine and gear pump are integrated into a single unit without belt drive, which greatly improves the gear pump’s functional efficiency and reduces production costs. It is designed with a burst-proof device and an emergency off-track function for safety operation.

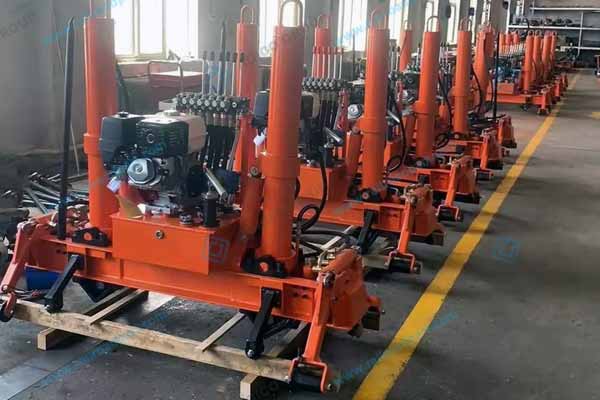

Track Lifting and Lining Machine & Tools Supply

The rail track lifting and lining machine (YQBJ-300X200 model) features integrated functions for lifting and lining rail tracks and is suitable for heavy-duty railway line overhaul and track bed maintenance.  AGICO also supplies rail switch lifting and lining machine, rail lifting tools and lining tools: rack jack, hydraulic rail lining device, hydraulic rail lifting device and rail jack are the 5 rail lifting and lining machines and tools supplied by AGICO for different rail lining tasks.

Track Lifting and Lining Operation Process

The YQBJ-300 hydraulic track lifting and lining machine is designed for multi-machine group operation. It is a dedicated lifting device for the relocation and laying of integral track. To adjust gaps between the 2 rails, the distance between the two support feet must be adjusted：

• First loosen the hex socket screw at the bottom of the lifting cylinder, allowing the lifting cylinder to move along the slide rail.
• After positioning the support feet, tighten the screw. The assembled track can be lifted slowly by arranging several such machines.
• With auxiliary equipment, moved integrally to the predetermined laying position, and finally adjusted to complete the track installation.

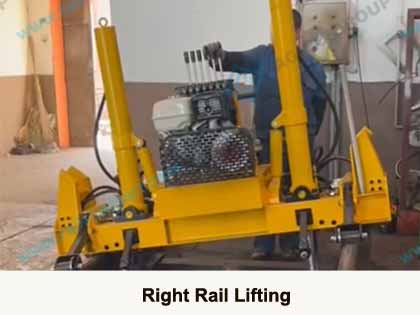

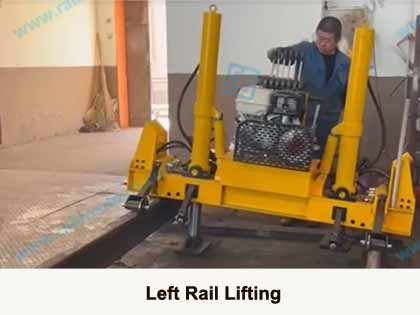

• The lifting and lining machine can also be used singly for single-rail or dual-rail lifting on plain tracks, facilitating track or ballast bed maintenance.

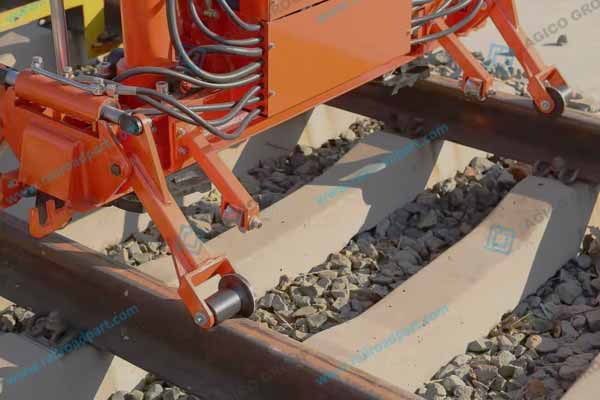

Structure of YQBJ Track Lifting and Lining Machine

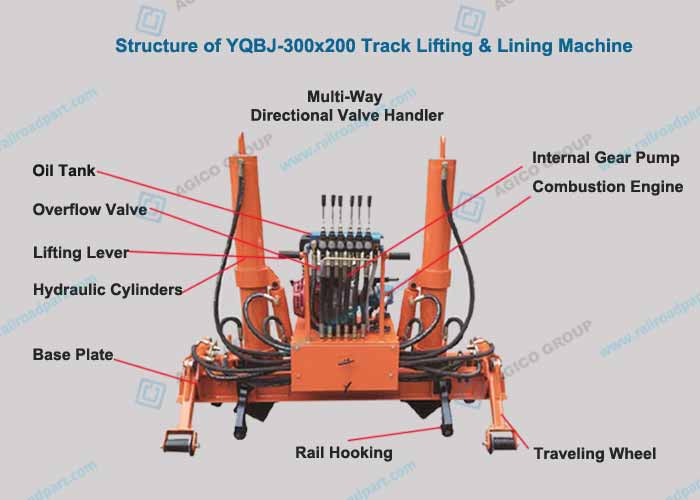

The hydraulic track lifing and lining machine consists of a combustion engine, internal gear pump, multi-way directional valve, manual double-plunger pump, oil tank, overflow valve, lifting lever, base plate, hydraulic cylinders (including those for lifting and lining), as well as mechanisms for lifting, rail hooking, traveling, off-track operation, and a manual oil pump, among other main structural components.

• Gasoline engine: The internal combustion engine drives the gear pump to generate hydraulic energy, delivering hydraulic oil that is distributed by the multi-way directional valve to various actuating cylinders. The gasoline engine shall not be started to avoid measurement errors during measurement.
• Overflow valve: An overflow valve is installed inside the oil tank. The system operating pressure is set to 72 MPa to achieve a smaller cylinder diameter, meeting the requirements of compact size and light weight. When the oil pressure exceeds 72 MPa, the overflow valve automatically unloads, providing overload protection and effectively reducing unwanted lifting.
• Unloading valve: The hydraulic lifting and lining machine has a rational structure. Each of the two lifting cylinders is equipped with an independent unloading valve. In case of hydraulic system failure, unloading can be performed at any time to ensure safe operation of the machine.
• Lifting and linkage control: The opening/closing of the rail hooks and the lifting of the frame are interlocked and move simultaneously; there is no risk of lifting the frame when the rail hooks have not yet opened.

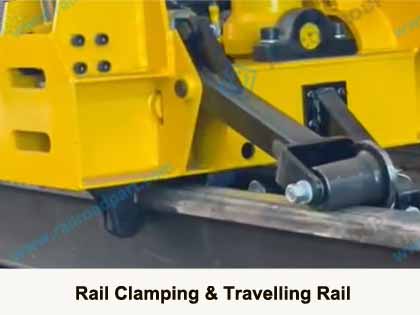

• Heavy-weight rail hook: The rail hook can automatically grasp the rail by gravity, making the operation more efficient. The hook grips the rail using a clamp-shaped structure to prevent slippage during lifting and lining.

Buy Rail Maintenance Machines from AGICO

Besides track lifting and tracking machines, AGICO also supplies a series of small-scale railway track maintenance machines and tools, which all have achieved technical indicators that rank among the advanced levels in the railroad industry. The hydraulic switch tamper stands out for its simple structure, ease of operation, high tamping quality, excellent efficiency, and safety and reliability. Products such as the rail profile grinding machine and the hydraulic rail tensioner have reached the technical level of similar international products. At present, our company has obtained CRCC product certification from China Railway Corporation and GB/T 19001 quality management system certification for a variety of products, including hydraulic switch tampers, internal combustion switch grinders, hydraulic tampers,  internal combustion rail drilling machines, internal combustion tamping picks, hydraulic rail tensioners, and hydraulic rail lifting and lining machines. Contact us if you need a quotation for free.
