Railroad Clip

What are railroad clips? Railroad clips are rail fastening components used on railway tracks to connect rails and sleepers (or other types of rail foundations), which is an intermediate connecting components. Their function is to fix the rails to the sleepers, maintain track gauge, and prevent longitudinal and lateral movement of the rails relative to the sleepers.

Rail fastener classification: Based on a classification of various rail fasteners used in national railways and local urban rail transit systems over the past decade, they can be broadly categorized into 4 series:

Traditional Fasteners
Underground Line Fasteners
High-speed Railway Lne Fasteners
Crane and Industrial Railroad fasteners

Choose Railroad Clips from AGICO By Application

AGICO is a leading manufacturer of railroad clips and railway fastening systems, we supply a full range of railroad clip types for high-speed railway tracks, heavy-haul railroad tracks, conventional railway track and crane rail tracks. AGICO can supply various types of railroad clips following wide international railway standards: EN 13481, AREMA, UIC, ISO, GB/T, and TB/T. Besides rail clips, AGICO also supplies railway fastener parts such as rail clamps, rail anchors, tie plates, baseplates, embedded inserts,etc.

AGICO offers following info for reference to customer to choose the right railroad clip model to your application, contact us if you need a free quote of latest price!

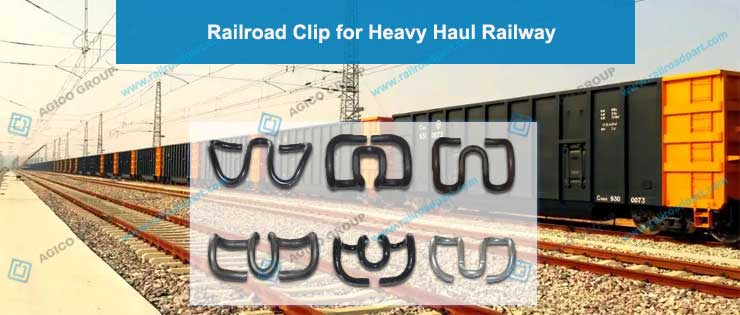

Railroad Clip for Heavy Haul Railway

Introduction: Railroad clips for heavy haul railways are designed for axle loads (≥ 30–40 tons), high clamping force and low deflection, AGICO supplies following railroad clip models for this application:

Heavy Haul Railway – Railroad Clip Models
Rail Clip Types	Models
E-type Clips	E1809, E1813, E1817, E2001, E2006, E2007, E2009, E2055, E2056, E2063, E2091
SKL Tension Clips	SKL12, SKL14, SKL75
PR Series Clips	PR309A, PR401, PR401A
Other Railroad clips	Gauge lock clip, Deenik clip, D-type Railroad clip

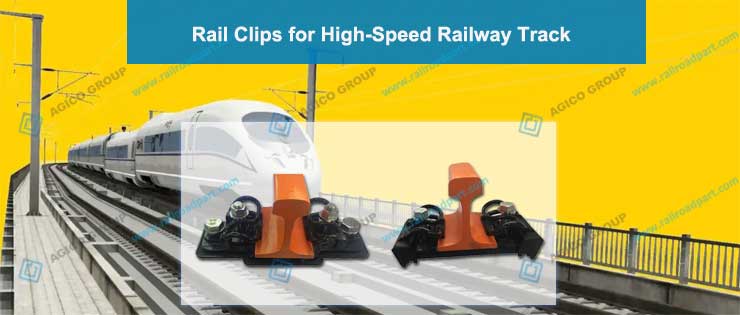

Railroad Clips for High-Speed Railway

Introduction: Railroad clips for high-speed railway are featured with superior vibration attenuation, highly stable track geometry under high-frequency loads, and excellent corrosion resistance and long service life.
AGICO supplies railroad clips suitable for high-speed railways(speed range ≥ 200–350 km/h). Here are the common series: SKL HS, W-series-clips, Fastclip HS.

High-Speed Railway – Railroad Clip Models
Rail Clip Series	Models
E-type Clips	E1609, E1809, E2009
SKL Tension Clips	SKL1, SKL3, SKL12, SKL14
PR Series Clips	(Limited use; special modified PR variants)
Other Railroad clips	Fastclip, N clips, D-type clip

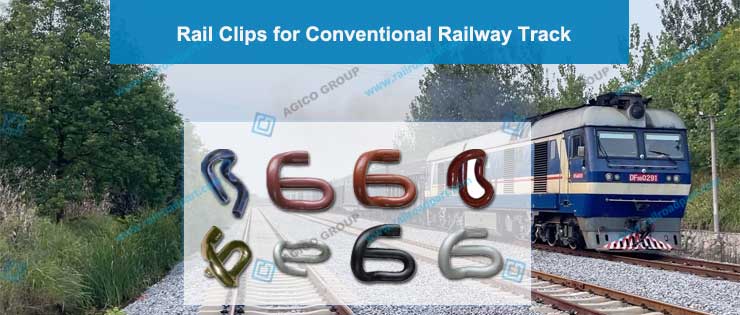

Railroad Clips for Conventional Railway E-clip, PR clip, Nabla

Introduction: AGICO fabricates cost effective railroad clips with mature technology, which are used for conventional railway suitable for wooden, concrete and steel sleepers Used in general passenger & freight operations. The main railroad clip types covers E-clip serise, PR series and Nabla Clips.

Rail Clips for Conventional Railway Track

Conventional Railway – Railroad Clip Models
Rail Clip Series	Models
E-type Clips	E1609, E1809, E1813, E2001, E2039, E2006, E2007, E2009, E2055, E2056, E2063, E2091
SKL Tension Clips	SKL1, SKL3
PR Series Clips	PR85, PR309A, PR401, PR415, PR401A
Other Railroad clips	N clips, D-type Railroad clip, Gauge lock clip, Fastclip

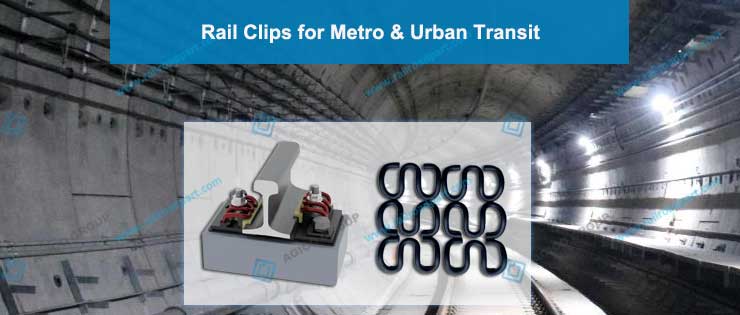

Railroad Clips for Metro & Urban Transit

Introduction: Railroad clips for metro and urban transit are designed with small deflection and low vibration for short-radius curves and frequent braking, which are compatible with embedded track / direct fixation track. Here are the detailed models and series:

Rail Clips for Metro and Urban Transit Track

Metro / Urban Transit – Railroad Clip Models
Rail Clip Series	Models
E-type Clips	E1609, E1809, E2039
SKL Tension Clips	SKL1, SKL3
PR Series Clips	PR series (urban-modified variants)
Other Railroad clips	Fastclip, N clips, low-profile D-type clips

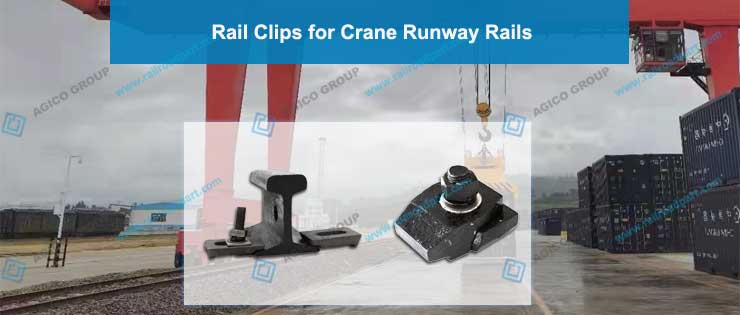

Rail Clips for Crane Rails

Introduction: AGICO supplies various models of crane railtrack clips for crane rails: A75, A100, A120, QU70–QU120, which are featured with high horizontal load resistance and adjustalbe rail positioning. They can be applied on overhead crane runways, gantry crane runways and port rails. Crane railtrack clips can be supplied in 2 types: elastic rail clips and weldable baseplate clips with elastic elements.

Crane Rail – Railroad Clip Models
Rail Clip Series	Models
E-type Clips	E2007, E2009
SKL Tension Clips	(Custom SKL-type crane rail tension clips)
PR Series Clips	(Rare; crane rails use dedicated clips)
Other Railroad clips	D-type Railroad clip (weldable/clamp type), crane rail elastic clips

Tips For Choosing The Right Railroad Clip Models

AGICO has provided useful tips for customers who don’t know which model to use, the selection of railroad clips is mainly based on the following factors, you can offer these information to AGICO and we will give you the best choice:

Operating Conditions: including design speed, axle load, and transport capacity of the railway line .
Track Structure Type: ballast or ballastless track, sleeper type (wooden/concrete), etc.
Environmental Requirements: especially in urban areas, where vibration and noise reduction are critical.
Economy and Maintainability: considering the price of the railroad clips and the workload of subsequent maintenance and repair.

Railroad Clip Technical Parameters

Railroad Clip Technical Parameters (Reference Ranges — per AREMA / EN 13481 / UIC / TB/T)
Model	Typical Material	Hardness (HRC) - Typical Range	Fatigue Life (million cycles) - Typical Requirement	Standards / Notes
E1609	60Si2MnA / 55Si2Mn	42–48 HRC	3–5	EN 13481 / AREMA / TB/T (suitable for conventional & light HS)
E1809	60Si2MnA	42–48 HRC	3–6	EN 13481 / TB/T (widely used, conventional → heavy variants for HH)
E1813	60Si2CrA / 60Si2MnA	43–48 HRC	3–6	AREMA / EN 13481
E2001	60Si2MnA	44–48 HRC	4–6	EN 13481 (heavy-duty variants available)
E2006	60Si2MnA	42–48 HRC	4–6	AREMA / TB/T (heavy-duty versions)
E2007	60Si2MnA / 55Si2Mn	42–48 HRC	4–7	EN 13481 / crane-rail compatible designs (check spec)
E2009	60Si2CrA / 60Si2MnA	44–49 HRC	5–8	AREMA heavy-haul variants common
E2039	60Si2MnA	42–47 HRC	3–5	Urban / metro applications common
E2055	60Si2MnA	44–48 HRC	5–7	EN 13481 — heavy & HS adaptations
E2056	60Si2CrA	45–49 HRC	5–8	High-fatigue tolerance (heavy / HS)
E2063	60Si2CrA	46–50 HRC	6–9	Super heavy-duty / heavy-haul designs
E2091	60Si2CrA / alloy spring steel	46–51 HRC	7–10	Very heavy-haul / demanding fatigue environments
SKL1	60Si2MnA	42–47 HRC	3–5	EN 13481 / DB / Vossloh family (metro & conventional)
SKL3	60Si2CrA	44–49 HRC	4–6	EN 13481 — regional HS & metro use
SKL12	60Si2CrA	45–50 HRC	5–7	Ballastless & high-speed approved variants
SKL14	60Si2CrA	45–50 HRC	5–8	EN 13481 / ballastless HS use
SKL75	60Si2CrA	46–50 HRC	5–8+	Heavy-duty SKL variant for high axle loads
PR85	60Si2MnA	41–47 HRC	3–5	AREMA / regional PR systems (often conventional)
PR309A	60Si2MnA	42–48 HRC	3–6	AREMA / country-specific PR specs
PR401	60Si2MnA	42–48 HRC	4–6	AREMA — heavier PR variants
PR415	60Si2CrA	44–49 HRC	5–7	Higher fatigue PR type
PR401A	60Si2CrA	44–49 HRC	5–7	AREMA / heavy regional lines
N Clip	Alloy spring steel (60Si2MnA variants)	42–48 HRC	3–6	Pandrol family / EN 13481 compatibility
D-type Clip	60Si2CrA / alloy spring steel	44–50 HRC	4–8	AREMA / crane-rail adapted versions
Fastclip (Pandrol)	Special alloy spring steel (proprietary)	45–52 HRC	5–12	Pandrol Fastclip datasheets (high performance for HS / heavy-haul)
Gauge Lock Clip	60Si2MnA	42–48 HRC	3–6	Gauge-lock systems (regional)
Deenik Clip	60Si2CrA	45–50 HRC	6–9	Heavy-haul proven types (AREMA references)
