SNGM-180 Rail Grinding Machine

SNGM-180 Rail Grinding Machine Introduction

SNGM-180 Portable Rail Grinding Machine Technical Specifications

Here are the details of SNGM-180 rail grinding machine, if you are interested in buying, send an message for free quote.

Item	Specification
Model	SNGM-180 Portable Internal Combustion Rail Grinder
Power Source	2-stroke gasoline engine
Rated Power	1.42 kW
Engine Speed	≥ 7,500 r/min
Spindle Speed	≥ 6,000 r/min
Grinding Wheel Linear Speed	≥ 70 m/s
Grinding Wheel Size	Ø180 × Ø22.2 × 6 mm or Ø150 × Ø22 × 6 mm (optional)
Overall Dimensions (L×W×H)	780 × 270 × 310 mm
Net Weight	Approx. 7 kg

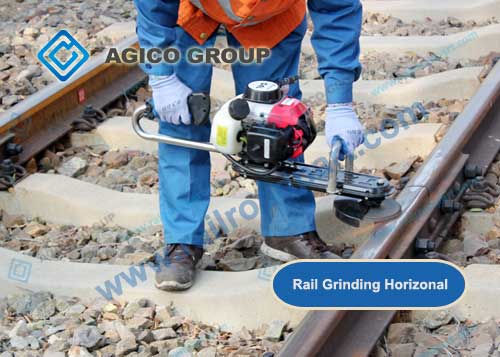

The SNGM-180 rail grinding machine is an internal combustion-powered portable grinding machine, 180 refers to the grinding wheel size. It is a lightweight rail grinding machine featured with highly efficiency, and mostly used for on-site grinding operations on various types of steel rails. SNGM-180 rail grinding machine has a  compact structure design with powerful performance and it’s very easy to operate.

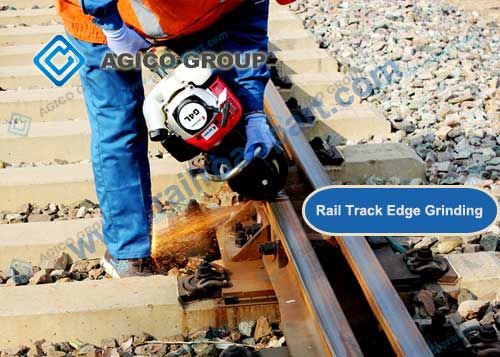

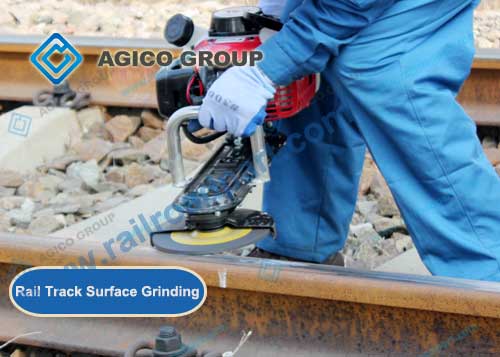

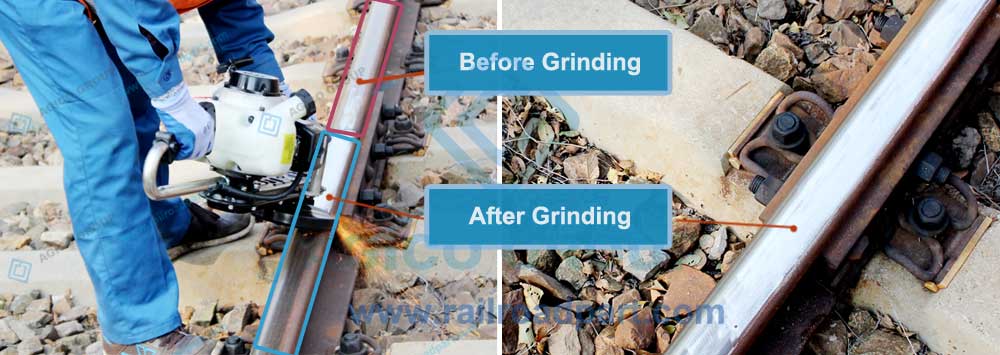

The SNGM-180 model rail grinding machine has been supplied to Asia, Africa, and European countries for rail surface grinding, burr removal, and weld seam finishing under diverse working conditions. It is an ideal rail grinding tool for railway maintenance, construction sites, and emergency repair operations.

SNGM-180 Rail Grinding Machine Designs & Features

The SNGM-180 Rail Grinding machine is easy to operate due to its lightweight (only 7kg) and compact design. It is equipped with a solid-quality gasoline engine with high rotation speed. This model is specially optimized for long-term grinding work on various rail track profiles. Here are the details:

---

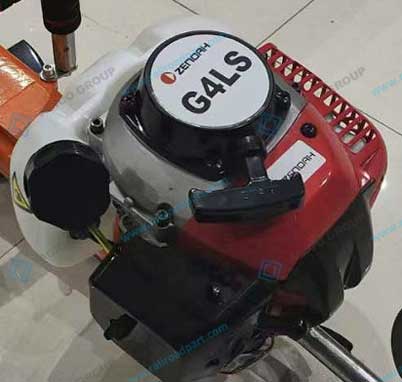

• High Efficiency & Powerful Engine: Equipped with a high-performance 2-stroke gasoline engine, the SNGM-180 rail grinder offers 1.42 kW of power and a high rotational speed exceeding 7,500 r/min, providing fast and efficient grinding results.
• Ultra-Portable Design: With a total weight of only 7 kg and compact dimensions (780 × 270 × 310 mm), this grinding tool is easy to carry and operate, which is perfect for grinding works of mobile and on-site operations.
• Optimized Designs for Easy Operation: User-friendly design of rail grinding machine enables quick starting, simple maintenance, and rapid familiarization, significantly reducing labor intensity and operation time.

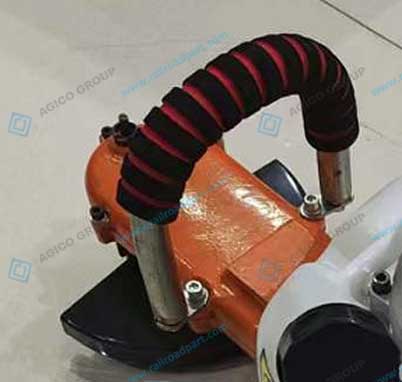

• Durable Structure for Heavy Duty Grinding: It is manufactured with robust structure and high-quality key components for long-term stable operation. And the simple belt tension adjustment mechanism design for enhancing its reliability and service life.
• Suitable for Various Rail Grinding Tasks: It can be installed with multiple grinding wheel specifications to meet different rail grinding precision requirements.

AGICO is a railway fastener and maintenance equipment supplier in China, Besides this portable model rail grinding machine, AGICO also supplies other rail grinder models:  cross section rail grinder, rail profile grinder, turnout rail grinder

Operation Details for SNGM-180 Rail Grinding Machine

Beside the SNGM-180 Model railg grinding machine, AGICO also provide a step to step instruction manual for users to know how it works, the structure, how to operate and tips of proper maintenance for the grinding machine, here are the details for reference:

How does SNGM-180 Rail Grinding Machine Work

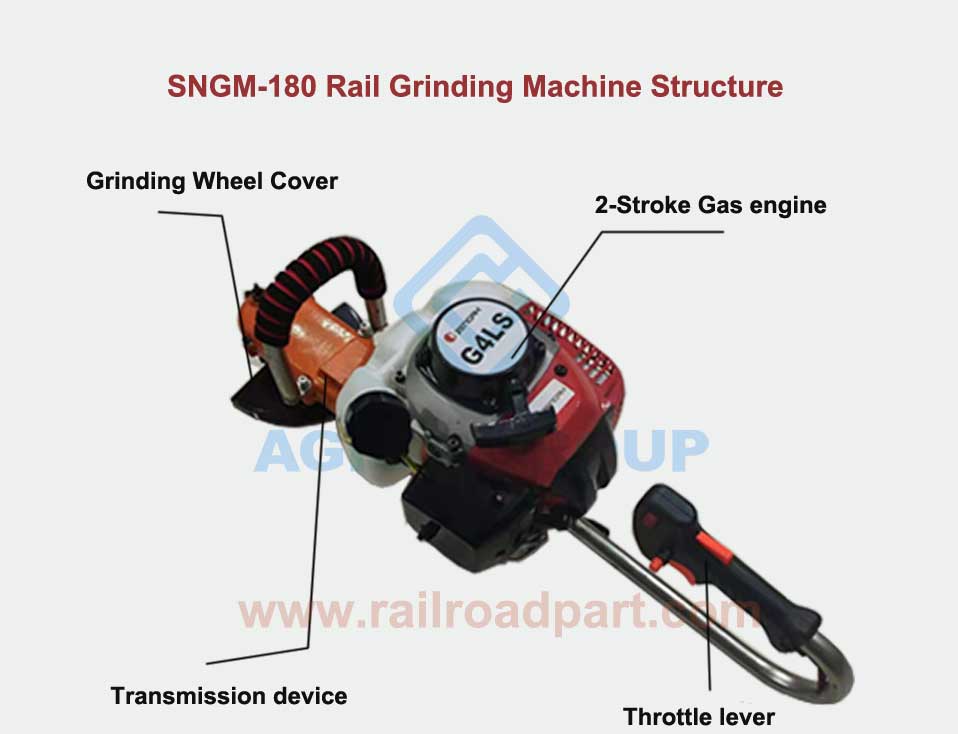

This portable type rail grinding machine is powered by an internal combustion engine, the grinding machine transmits power through a centrifugal clutch and belt drive system to the spindle, driving the grinding wheel to rotate at high speed for rail grinding operations. The SNGM-180 grinding machine is mainly consists of the engine, transmission system, spindle assembly, handles, and protective guards.

3 Steps for Rail Grinding Machine Operation

There are basically 3 steps for operating SNGM-180 rail grinding machine: firstly user shall add fuel and engine oil at a proper ratio, and install the grinding wheels or replace it if it is worn, then start and warm up the machine before the grinding work, here are the details:

• Fuel Mixing: Mix gasoline with two-stroke engine oil at a ratio of 50:1 (or 25:1 when using commercially available two-stroke oil). Always follow the instructions provided in the engine manufacturer’s manual supplied with the machine.

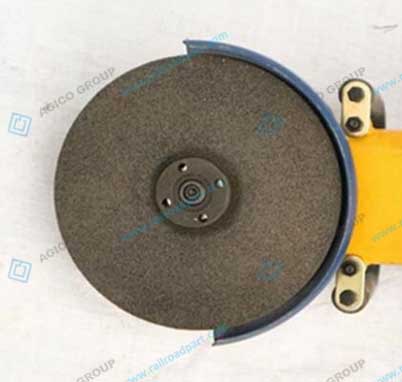

• Grinding Wheel Inspection & Replacement
  Before operation, inspect the grinding wheel for cracks, moisture damage, deformation, or uneven surfaces. Replace immediately if any defect is found.
  To replace the wheel, press the spindle locking button (for nut removal only; never use it as a brake), and loosen the locking nut using the supplied wrench. Ensure the nut is fully tightened after installation. If removal is difficult, use a tool to hold the flat section at the back of the grinding wheel.

• Starting & Grinding Operation
  Start the engine and allow it to idle for at least 30 seconds for warm-up.

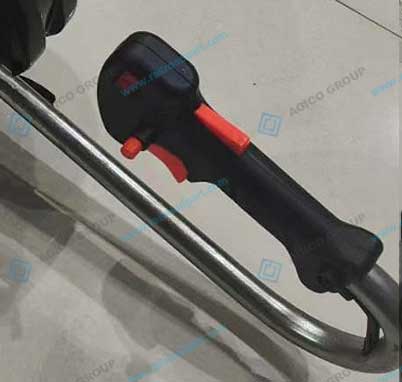

  Hold the front and rear handles firmly with both hands. Once the machine runs smoothly, gradually increase the throttle.
  Begin grinding only after confirming stable operation, no abnormal noise, and minimal vibration.

Maintenance Instructions for SNGM-180 Rail Grinding Machine

Although the SNGM-180 rail grinding machine is designed with long service life, it still requires proper maintenance works, here are the detailed info of basic mainenance tips for users, if you have any other problems, feel free to contact us, AGICO is always ready to solve your problems!

• Routine Maintenance: After 500 hours of cumulative operation, disassemble and clean the spindle bearings, and apply an appropriate amount of high-speed grease. Avoid excessive lubrication, which may cause belt slippage.
• Belt Adjustment: If grinding performance becomes weak, adjust the belt tension appropriately using the adjustment bolts.
• Storage Requirements: When not in use for extended periods, store the machine in a dry, well-ventilated area free from corrosive gases. Drain the fuel completely to prevent fuel system blockage. Grinding wheels should be protected from moisture, impact, and compression.
• Operating Environment: Recommended operating temperature range for the gasoline engine: –15°C to 40°C.

---
