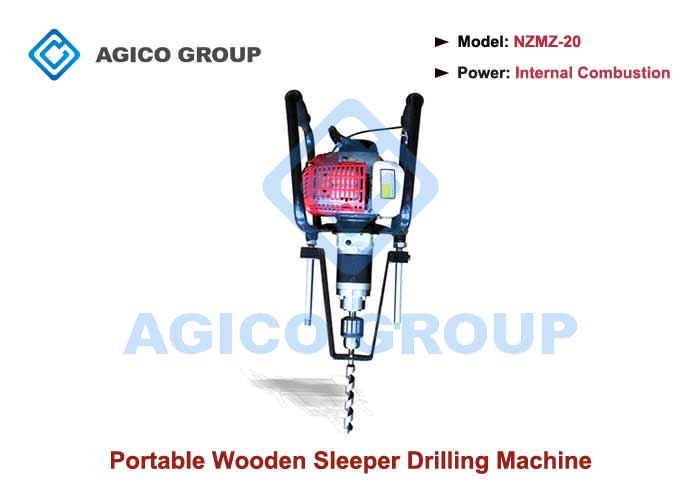

NZMZ-20 Rail Drilling Machine

---

Main Parameters of NZMZ-20 Rail Drilling Machine:

Here are the basic parameters of NZMZ-20 portable drilling machine for wooden sleeper, this info is only for reference, if you want the latest price or info of rail drilling machines, feel free to send a message now through the website form or contact directly with WhatsApp.

Working Principle of NZMZ-20 Wooden Sleeper Drilling Machine

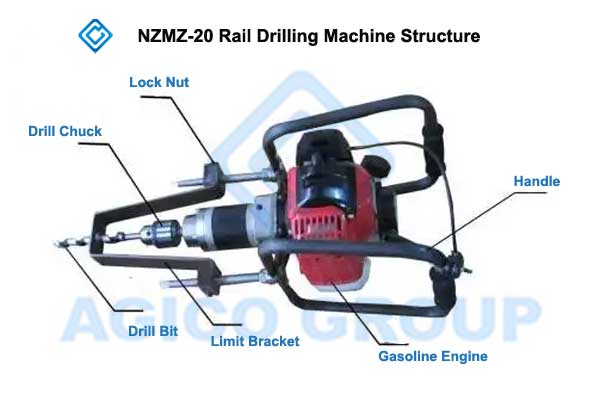

Structure Design: NZMZ-20 rail sleeper drilling machine is a small sized portable type tool with compact structure, here are its basic structure overview: Handle, gasoline engine, drill chuck, drill bit, limit bracket, and lock nut. The simple design made it very easy to operate and simple to maintenance.

How does wooden sleeper drilling machine work?

After the NZMZ-20 drilling machine is started, a 1.42kW 2-stroke gasoline engine is powered and delivers robust performance for efficient drilling. It can be installed with a drilling bit  diameter range up to 20mm, which is able to cover the drilling requirements for various wooden sleeper drilling tasks. The drilling speed exceeds 350 r/min so that the work efficiency is enhanced. AGICO supplies the drill bit sets which is specially designed for wooden sleepers,  ensures both drilling quality and speed, it takes less than 20 second for drilling a hole, significantly shortening the operational cycle. This drilling machine's weighs only 14 kg, the lightweight design brings the benefits of easy portability and operation.

Operation Guidelines of NZMZ-20 Rail Drilling Machine

1. Preparation and Adjustment

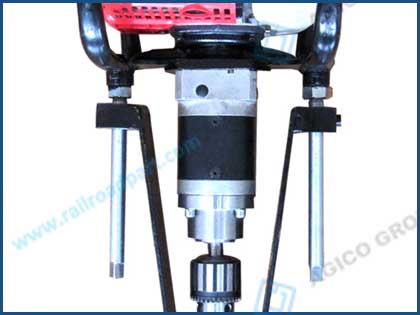

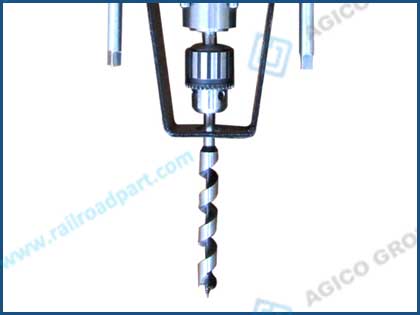

Before starting the drilling work, the operator must learn and strictly adhere to the relevant provisions of the Ministry of Railways' "Railway Permanent Way Safety Rules", so as to ensure safety and protective measures are taken during drilling task. The firest step is securely clamping the wooden sleeper drill bit into the drill chuck, this step is for guarantee of drilling stability. Then adjust the drill bit and the limit bracket distance according to the required drilling depth, and fasten it securely using the lock nut.

2. Drilling Procedures

First step is adding fuel, the operator shall mix gasoline with an octane rating of 90 or higher and 2-stroke engine oil in a 25:1 ratio, and add the mixture to the engine fuel tank. Then, use the primer bulb (oil pump) to fill the transparent bulb with the fuel mixture, ensure all parts are working smoothly.

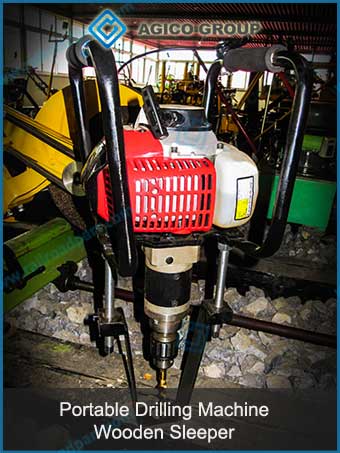

Start Drilling: The drill operator firmly hold the handle with both hands, align the drill bit tip with the intended drilling position and start drilling, hold the drilling machine verticality and steadly during drilling to ensure drilling quanlity and accuracy. Utilize the limit bracket to control the drilling depth, ensuring consistency for each hole.
Remove Drilling Machine: After drilling, lift the drilling machine upwards while simultaneously pressing the yellow engine kill switch to stop. Then move the entire drilling machine outside the trackside clearance limit.

3. Safety Precautions

To ensure the safety during operating, the operator shall not operate this drilling machine in rainy weather. When the drill bit becomes worn, replace it promptly with a new wooden sleeper drill bit to maintain drilling quality and efficiency. The gasoline engine has a fuel tank capacity of 0.95L, sufficient for approximately 1 hour of drillingoperation. The operator can add enough fuel as needed, so that the drilling work for one task can be finished without any break for fuel shortage.

Troubleshooting

NZMZ-20 rail drilling machine has very simple structure, so the machine faults are basically about 2 major part: clutch and drill bit wear, engine fault.

What Can AGICO Supply: AGICO offers rail drilling machine products that cover the full-scenario of railway construction and maintenance, and can provide efficient and accurate solutions from daily maintenance to emergency repairs. We can provide manual type rail drilling machine, concrete bolt drilling machine, wooden sleeper drilling machine, fishbolt hole drilling machine, etc. AGICO supplies all types rail track maintenance equipments and tools following Q/CR 885—2022 - Q/CR 900—2022 standard, contact now if you need a free quote of railway maintenance equipments.
