NZG-31 Rail Drilling Machine

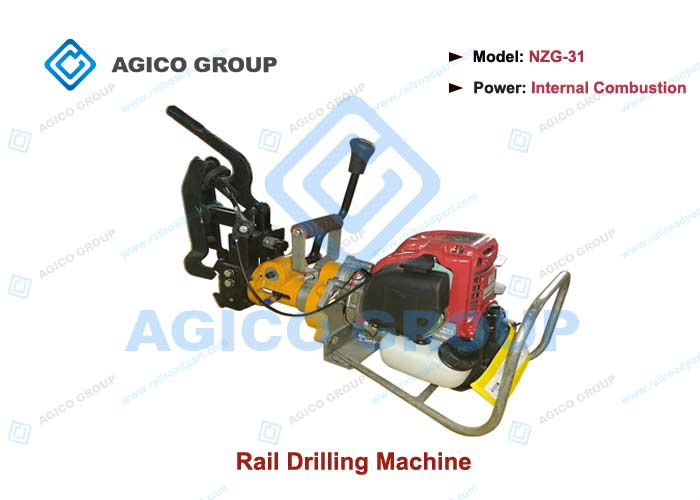

NZG-31 Internal Combustion Rail Hole Drilling Machine
The NZG-31 Internal Combustion Rail Drilling Machine is a high-power railway maintenance tool designed for operations in areas without an electrical power supply. The rail drilling machine is powered by an internal combustion engine and features a compact structure, simple operation, and convenient maintenance. It is an ideal tool for drilling holes in 50 kg and 60 kg railway rails.

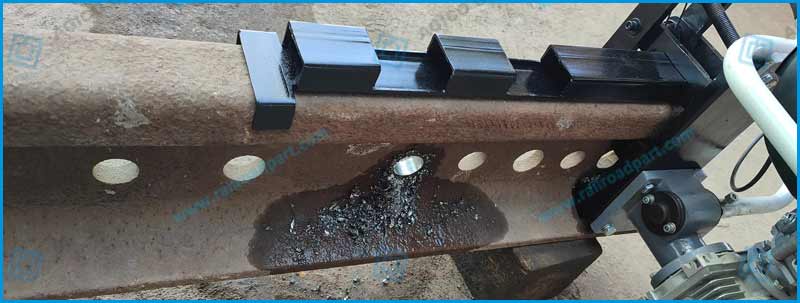

Fish Bolt Hole DrillingApplication: This drilling machine is suitable for maintenance and engineering departments to drill rail joint holes and switch stock rail holes. It can also be used by signaling and engineering departments to drill holes for bonding wire plug bolts in rails.
Feature: The machine is characterized by safe and reliable performance, quick clamping, high drilling accuracy, short drilling time, high efficiency, light weight, simple operation, and flexible handling.
Technical Parameters of NZG-31 Rail Drilling Machine
AGICO supplies 3 models of NZG series rail drilling machines for sale, NZG, NZG II and NZG III. Here is the NZG model specifications table for reference. If you need more info on the other 2 models, send an email to us now!
| Item | Specification |
|---|---|
| Drilling Diameter | φ9.8 – φ31 mm |
| Rated Power | 1.2 kW |
| Rated Speed | 270 – 350 r/min |
| Accuracy | 0.2 mm |
| Drilling Time | 30 – 45 seconds |
| Machine Weight | 17 kg |
Working Principle of NZG-31 Rail Drilling Machine
The NZG-31Ⅱ Internal Combustion Rail Drilling Machine is a specialized machine designed for railway maintenance and engineering departments to drill fishplate bolt holes in rails. It is suitable for drilling P65 and P75 rails.
NZG-31 Rail Drilling Machine Working Principle

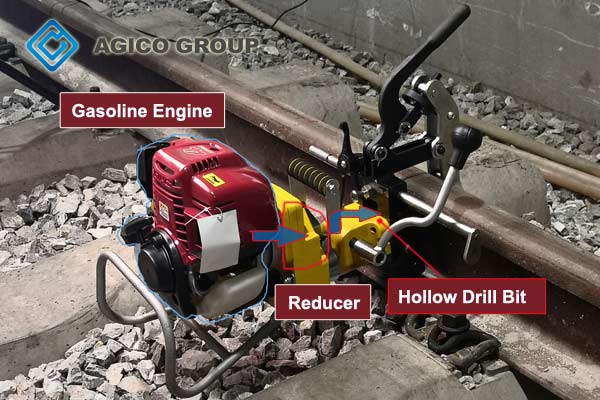

A small gasoline engine powers the rail drilling machine. Then the power is transmitted through a dedicated reducer to drive the drill rod to rotate. The feed mechanism is driven by a handle-operated gear and rack system, while the clamping mechanism uses a worm and worm gear structure.
A drill rod support bracket is installed to ensure accurate drilling direction and extend the service life of the drill bit. The machine is equipped with a special hollow drill bit, and if required, it can also clamp twist drill bits with diameters up to φ13.5 mm. During drilling, the machine provides an automatic water cooling function.
The internal combustion rail drilling machine has a compact structure and is currently one of the lightest drilling machines available domestically. The rail clamping device features a self-locking function, ensuring accurate positioning and high drilling precision.
Main Structure of NZG-31 Rail Drilling Machine

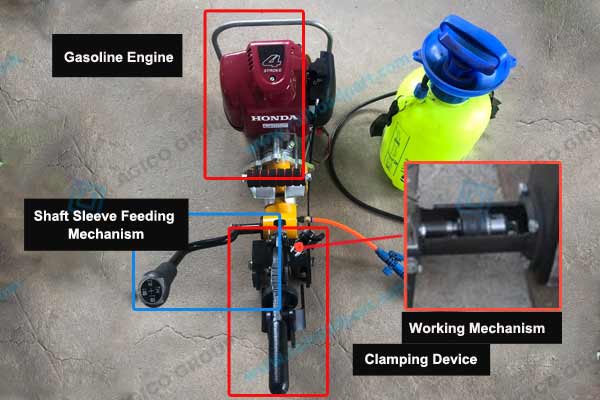

The NZG-31 rail drilling machine mainly consists of the following components: Clamping device, Shaft sleeve feeding mechanism, Working mechanism, Reducer, Gasoline engine.
NZG-31 Rail Drilling Machine StructureThe power generated from the gasoline engine is transmitted through the clutch, reducer, and working mechanism to the spindle, which drives the drill bit to rotate.
Learn How to Operate Rail Drilling Machine Step by Step

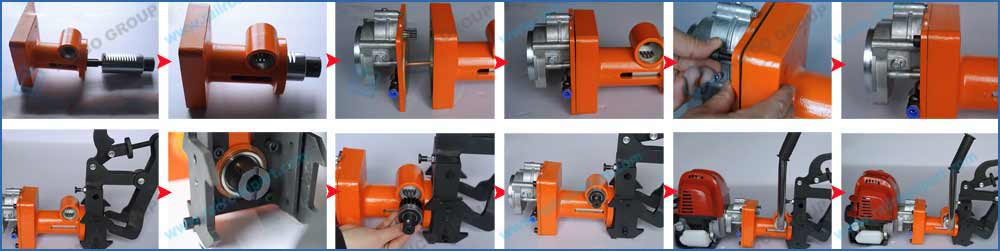

NZG31 Rail Drilling Machine Install1. Installing the Drill Bit
Loosen the 2 set screws located perpendicular to each other at the front of the spindle. Insert the drill bit and align the two flat surfaces of the drill shank with the set screws, then tighten the screws.
2. Adjusting the Support Blocks
There are four support blocks at the bottom of the clamp. Different rail type position markings are located on the side of the clamp body. Loosen the support block bolts (do not remove them), adjust the position according to the rail type to be drilled, and then tighten the bolts.
3. Adding Fuel
Unscrew the fuel tank cap on the top of the tank. Add 90# (or 93#) gasoline, then tighten the cap.
4. Lubrication
Before starting the engine, add four-stroke motorcycle engine oil to the engine and gearbox.
5. Mounting the Drilling Machine
The vertical clamping screw on the clamp can be used as a handle. Lift the drilling machine so that the side of the upper beam of the clamp presses firmly against the side of the measuring scale stop block. Tighten the clamping screw to secure the machine to the rail.
6. Connecting the Cooling Water
The machine is equipped with a pressurized water tank. Fill the tank with clean cold water and tighten the cap. There is a water pipe connector on the side of the drilling machine. Connect the water pipe to this connector, pressurize the tank, and check that the system does not leak.
Important: The water pressure system must be pressurized. If there is no pressure, the machine must not be used, otherwise the drill bit may burn out.
7. Starting the Engine
Start the engine strictly according to the gasoline engine instruction manual.
8. Drilling Operation
When the engine speed reaches 2000 rpm, the spindle can begin rotating. Increase the throttle to raise the spindle speed to about 400 rpm, turn on the cooling water, and pull the feed handle to begin the drilling operation.
