Railroad Grinders

Choose Railroad Track Grinders Types for Your Work

According to its main function, rail grinders are classified into 4 types: rail grinder for turnout, rail grinder for cross section, rail grinder for dust remove and rail profile grinder, customer can choose from electric motor type and internal combustion engine type. If you are looking for solid rail grinders, get a free quote now for the railroad track grinders below!

Rail grinder for Turnout

1. DGM Series:
AGICO supplies 2 DGM Models of rail grinder for turnout: DGM-2.2I（2-stroke gasoline engine） and DGM-2.2II （Lithium Battery）.

• DGM-2.2I Multifunctional Turnout Rail Grinding Machine This model is suitable for grinding the point rail. It is a small mobile point rail grinding machine, featured with small size and lightweight, easy operation, high grinding efficiency, and can ensure the quality requirements of point rail grinding.
• DGM-2.2II Multifunctional Turnout Rail Grinding Machine (Lithium Battery) It can timely eliminate or repair the damage to the rails in the weak parts of the turnout. It mainly repairs the fat edges, profiles and reduction values ​​of the point rails, movable heart rails and wing rails with a cross-sectional width of less than 50mm, to slow down the development of surface defects of the rails, improve the smoothness of the rail surface, improve the wheel-rail contact relationship, reduce wheel-rail noise, extend the service life of the rails and reduce maintenance costs.

2. NCM series (internal combustion)

• NCM-4 rail turnout grinder: mainly used for grinding the fat edges of the top and side surfaces of point rails, frog rails, wing rails, and can also be used for the top and side surfaces of various types of rails, with excellent performance, saving time and effort.
• NCM-4II rail turnout grinder: similar in function to NCM-4, suitable for various types of rails, with reasonable structure and reliable quality, an ideal tool for the engineering department to repair the line.
• NCM-5.1II rail turnout grinder: suitable for fine grinding of fat edges and curved surfaces of point rails, frog rails, wing rails and various types of rails, with microcomputer control of feed and angle, night lighting function, accurate and easy to operate, and excellent performance.

Rail Profile Grinder

NGM-4.5

• NGM-4.8 rail profile grinding machine is a special equipment designed for 43kg/m-75kg/m rails. It is suitable for grinding rail defects such as aluminum hot seamless welding, reinforcement welding, rail surface welding repair, uneven joints, rail side fat edges and wear burrs. This machine adopts high-quality carbon structural steel plate welded machine body. It is equipped with a biased anti-skid guide wheel system, which can accurately complete the profile grinding operation on both sides and the top of the rail head. It has the characteristics of high operating efficiency, excellent grinding quality, and convenient human-machine interaction. It is specially equipped with a fast on and off track device to improve maneuverability. It is an ideal tool for railway engineering departments to carry out rail overhaul, daily maintenance, emergency repairs and fine grinding of rail heads, which can improve the line's smoothness and driving safety.
• The NGM-4.8 rail grinder utilizes a gasoline engine for power, driving a synchronous pulley through a centrifugal clutch. It transmits power to the main shaft via a synchronous belt, which rotates the grinding wheel. The feed amount of the grinding wheel can be adjusted using a feed hand wheel. If grinding the rail side and arc is necessary, the rail can be ground by rotating the contour hand wheel.

DM Serie Rail grinder for Cross Section

DM-1.1 and NDM-1.4 Rail Grinder

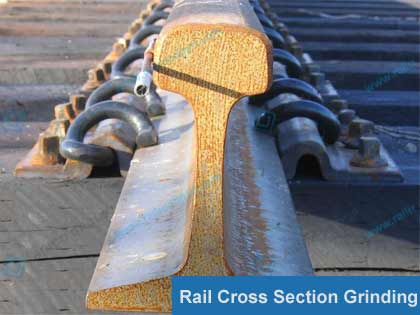

Rail grinder for cross section is used to grind the rail track end, AGICO supplies the DM-1.1 electric rail end grinder and the NDM-1.4 internal combustion rail end grinder, both are high-efficiency rail end processing equipment specially developed for mobile gas pressure welding. The 2 types of rail grinder adopt modular design, integrated with quick clamping mechanism and axial positioning system, which can realize the rapid fixation and benchmark calibration of various types of rails of 75kg/m and below.
The DM-1.1 is equipped with a high-torque permanent magnet motor drive system, with an output power of 2.2kW and a grinding line speed of 25m/s, which is suitable for stations and maintenance bases with stable power supply; the NDM-1.4 is equipped with a low-emission internal combustion drive system with a continuous output power of 3.5kW, which meets the needs of field construction without external power supply.

Rail Grinder for Rust Remove

NXG-4

The NXG-4 rail grinder for derusting is equipped with a GXV160 high-performance gasoline engine and adopts direct drive power output technology, which effectively reduces energy loss and significantly improves operating efficiency. The powerful engine can drive the wire brush to rotate at a high speed of 3,600 revolutions per minute, quickly stripping the rust layer on the surface of the rail, and the single operation efficiency is more than 30% higher than that of traditional equipment. The standard high-carbon steel wire brush disc is suitable for rust removal of various types of rails, and can be quickly switched to a diamond grinding wheel module to achieve the rail top profile repair function.

Portable Rail Grinder

SNGM-180 portable rail grinder is designed for all-round rails grinding, it is suitable for all types of rails and is portable and efficient. The machine weighs only 7kg and is compact (780×270×310mm), easy to carry, and suitable for rail maintenance and other complex working conditions. It is equipped with a two-stroke gasoline engine with a power of 1.42kW and a speed of ≥7500r/min. The grinding wheel is driven by a belt drive (∮180/∮150 specifications are optional), the grinding wheel linear speed is ≥70m/s, and the grinding efficiency is excellent. The centrifugal clutch design ensures stable power transmission, simple operation, and quick maintenance. It is an ideal tool for railway maintenance and engineering fields.
